Our wall-mounted backlit systems consist of an aluminium extrusion frame kit, and a SEG tension fabric graphic. The frame is 75mm thick for the standard and 60mm thick for the premium, and should be fitted to a solid wall.
The fabric graphic is printed using a dye-sublimation process onto 310gsm Backlit Polyester. This process gives the image great vibrancy and is finished with a silicone edging (kedar). The graphic is then slotted into the aluminium channel and tensioned around the edge.
The result is a beautifully-finished, vibrant and seamless solution. Perfect for store all manner of applications including displays and exhibitions. Graphics are easily replaceable by existing ground staff, negating the need for skilled installers.

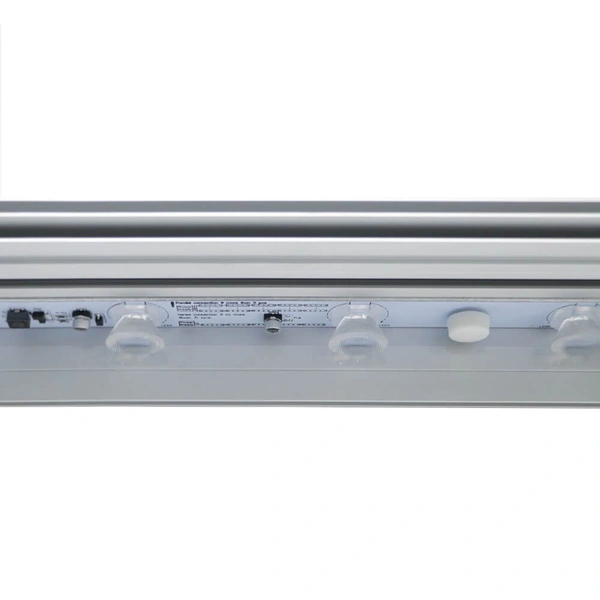

Lumens, quality and number of LEDs used are the main differences between the standard and premium models. The LED lights are located around the inside edge of the frame meaning they are edge-lit. Premium models have lights along the long edges for better light quality. Lightboxes are supplied in sections and require some assembly with the provided allen key.
A nylon pull tab is fitted to each Lightbox graphic as standard. This aids easy removal of the graphic from the frame, which can be tricky otherwise. By default, this is affixed to an upper corner of the graphic to prevent children reaching it. Please let us know if you would prefer the pull tab to be located elsewhere or not supplied at all.
Lighting anomalies can be highlighted with plain designs or large blocks of a single colour. It is therefore recommended to use busy, vibrant designs for best results.
Premium Lightboxes can be requested at larger and/or bespoke sizes - please contact us for a quotation.
The aluminium frame will require drilling to create your own fixing points. This allows for maximum hanging flexibility for various wall surfaces. As the aluminium frame does not have any standard fixing points we do not provide a wall-mounting kit.

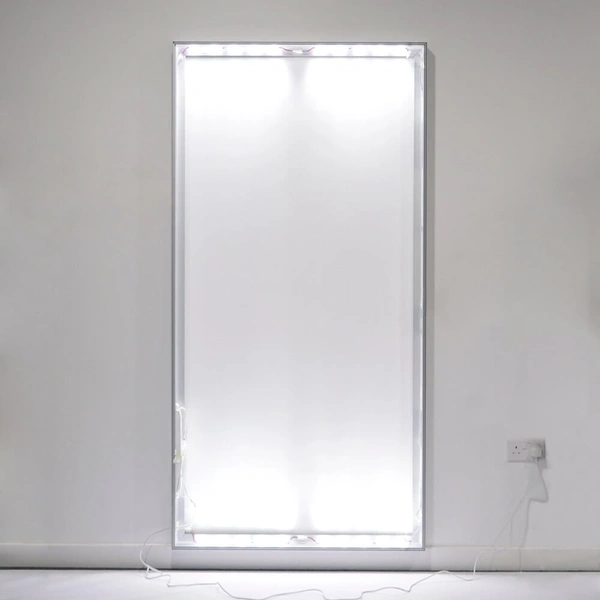

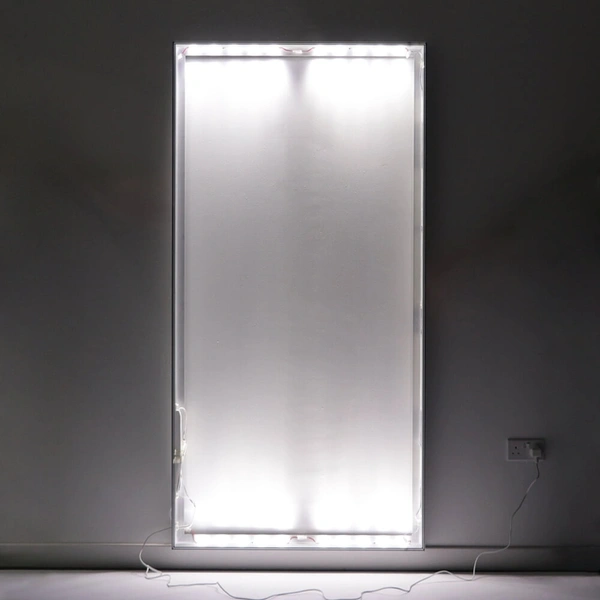

Standard SEG Wall Mounted Lightbox - Lights On
| File | Size | Download | ||
|---|---|---|---|---|
| Standard SEG Wall Mounted Lightboxes Spec Sheet | 2.4mb | |||
| Premium SEG Wall Mounted Lightboxes Spec Sheet | 1.9mb | |||
Our wall-mounted backlit systems consist of an aluminium extrusion frame kit, and a SEG tension fabric graphic. The frame is 75mm thick for the standard and 60mm thick for the premium, and should be fitted to a solid wall.
The fabric graphic is printed using a dye-sublimation process onto 310gsm Backlit Polyester. This process gives the image great vibrancy and is finished with a silicone edging (kedar). The graphic is then slotted into the aluminium channel and tensioned around the edge.
The result is a beautifully-finished, vibrant and seamless solution. Perfect for store all manner of applications including displays and exhibitions. Graphics are easily replaceable by existing ground staff, negating the need for skilled installers.
Lumens, quality and number of LEDs used are the main differences between the standard and premium models. The LED lights are located around the inside edge of the frame meaning they are edge-lit. Premium models have lights along the long edges for better light quality. Lightboxes are supplied in sections and require some assembly with the provided allen key.
A nylon pull tab is fitted to each Lightbox graphic as standard. This aids easy removal of the graphic from the frame, which can be tricky otherwise. By default, this is affixed to an upper corner of the graphic to prevent children reaching it. Please let us know if you would prefer the pull tab to be located elsewhere or not supplied at all.
Lighting anomalies can be highlighted with plain designs or large blocks of a single colour. It is therefore recommended to use busy, vibrant designs for best results.
Premium Lightboxes can be requested at larger and/or bespoke sizes - please contact us for a quotation.
The aluminium frame will require drilling to create your own fixing points. This allows for maximum hanging flexibility for various wall surfaces. As the aluminium frame does not have any standard fixing points we do not provide a wall-mounting kit.
| File | Size | Download | ||
|---|---|---|---|---|
| Standard SEG Wall Mounted Lightboxes Spec Sheet | 2.4mb | |||
| Premium SEG Wall Mounted Lightboxes Spec Sheet | 1.9mb | |||
